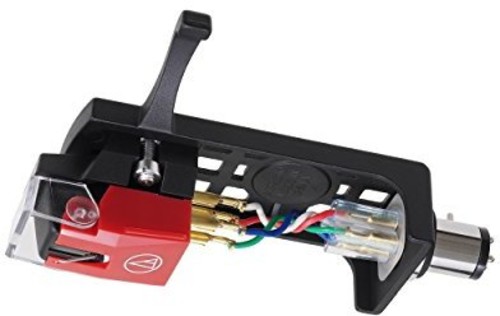

AUDIO TECHNICA VM540ML/H Headshell/Cartridge Combo Kit Headshell/cart

The VM540ML/H combo kit includes the VM540ML MicroLine® dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2"-mount headshell. The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

Product Features

Frequency Response 20-27,000 Hz

Channel Separation 28 dB (1 kHz)

Vertical Tracking Force 1.8-2.2 g (2.0 g standard)

Stylus Construction Nude square shank

Recommended Load Impedance 47,000 ohms

Output 4.0 mV (at 1 kHz, 5 cm/sec)

Channel Balance 1.0 dB (1 kHz)

Stylus Shape 2.2 x 0.12 mil MicroLine®

Cantilever Aluminum tapered pipe

Mount Half-inch
